Settings

To open application settings, hover over top-right part of the window and click the gear icon.

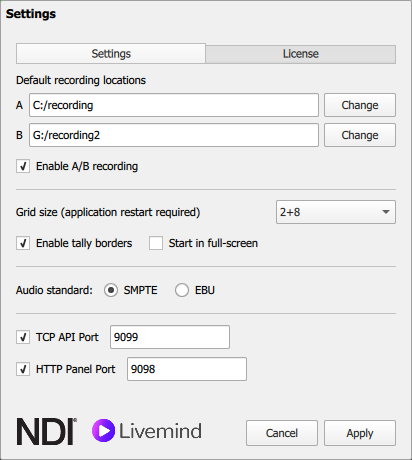

Settings tab

Default recording locations

Default locations where recordings will be placed unless overwritten by Slot settings. Locations must be valid and writable, otherwise they will be marked in red.

Enable A/B recording

Enables mode where recordings can be spanned across two locations. Locations A and B can be switched on the fly for each source during recording. Additionally, in this mode, location will be switched automatically when current location gets full.

Grid size

Allows choosing the layout of the Multiview. Currently available options include grids of sizes: 2x2, 3x2, 3x3, 4x3, 4x4 and two switcher-style layouts: 2+8, and 2+14.

Switching the layout requires restart of the app to take effect.

Enable tally borders

Enables green and red borders on the sources that carry tally information.

Start in full-screen

When enabled, app will be launched in full-screen mode.

Audio standard

Audio alignment standard used when displaying VU-meters and during audio recording.

SMPTE: 0dBVU equates to -20dBFS
EBU: 0dBu equates to -18dBFS

TCP API

Enables TCP API. Allowed ports are in range 81-65535. On Linux, port higher than 1023 must be chosen.

HTTP Panel

Enables web control panel. Allowed ports are in range 80-65535 (must be different than TCP API port). On Linux, port higher than 1023 must be chosen.
